HookLoada

World-famous range of hook-lift trailers designed for year-round professional use

Multiple savings. One powerful investment.

(1) Reduced capex - one hooklift trailer with containers is >66% cheaper than multiple single-purpose trailers.
(2) Reduced opex – fewer tractors, operators, fuel used and hours wasted with faster streamlined operations.
(3) Reduced maintenance – keeping several trailers roadworthy is expensive with multiplied maintenance.
(4) Reduced cycle times – ground-demountable containers deliver faster, more productive loading cycles.
(5) Reduced labour costs – no more wasted labour hours with the efficient HookLoada shuttling system.

Stay ahead of the field

with HookLoada.

Many tasks. One hero.

Think efficient with HookLoada

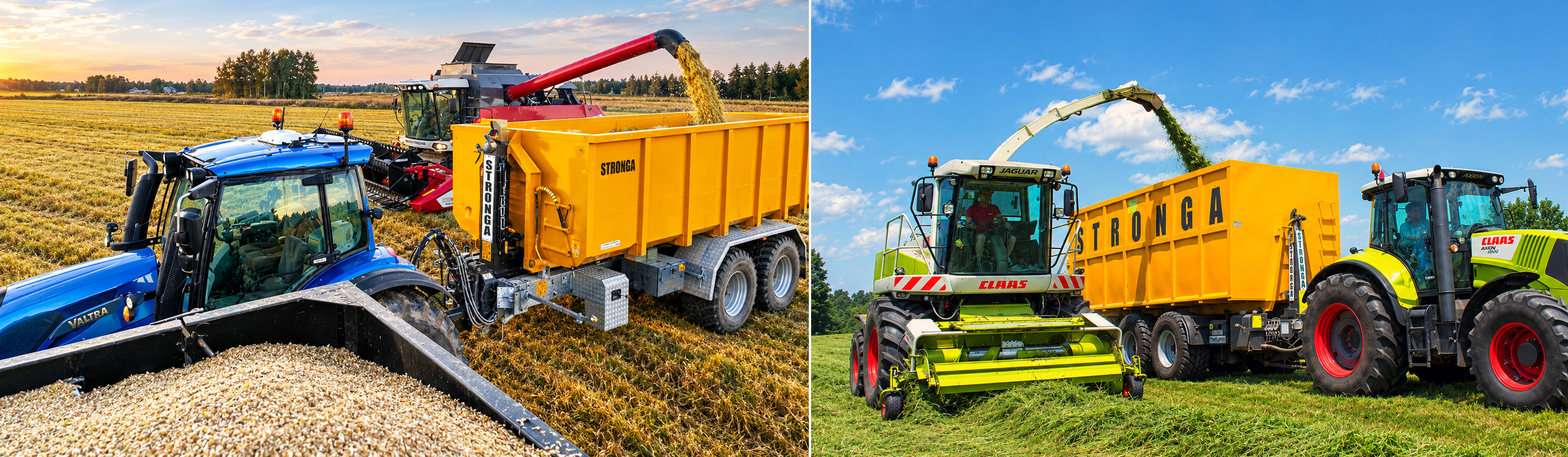

The HookLoada concept - one multi-functional hooklift trailer can handle hundreds of transport applications, delivering improved efficiency with long life reliability. Ask yourself; why would you operate and maintain 5 single-purpose trailers when one hooklift trailer with matched containers will give year-round service at lower cost? It’s a no brainer; greater transport flexibility translates into more profitable business.

6 reasons to choose Stronga HookLoada >

Efficiency. Built-in.

Time-saving container shuttling process

Classic design

Iconic hook-lift equipment from Stronga

Long life workhorse

Put your trust in a well-proven workhorse

Maximise uptime. Optimise productivity.

The component quality of HookLoada has been considered to maximise uptime, optimise productivity and lower service costs. Stronga’s reputation for quality-built hooklift equipment provides strong residual values which together lead to a low cost of ownership. Stronga believe in the continual improvement of our products to meet your demands for increased lifting and tipping capacities while reducing weight through the use of high strength steels.

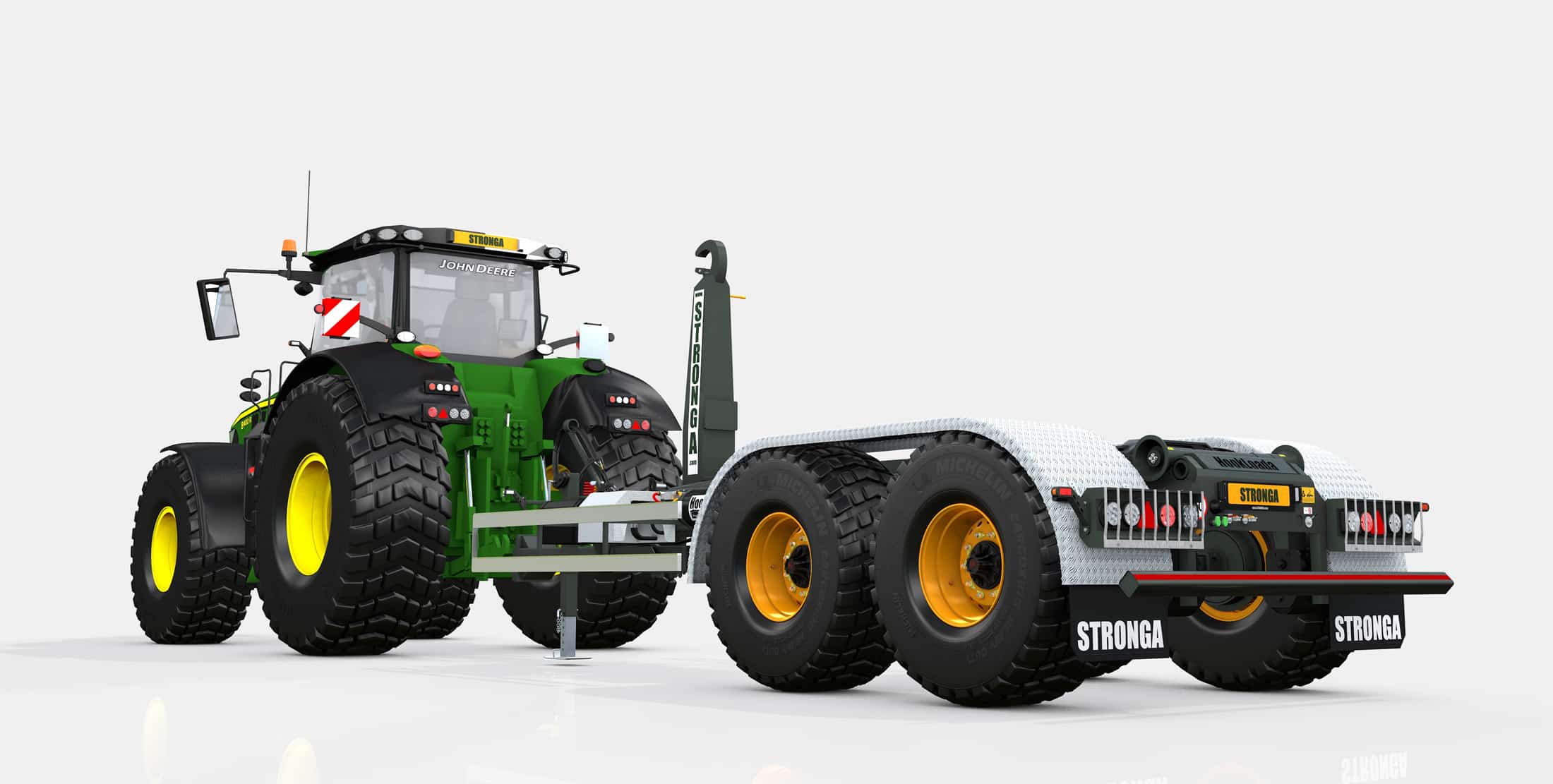

Interact with the 3D hook-lift trailer below to take a 360˚ tour of HookLoada.

Key features of the Stronga hooklift trailer

Passionately produced by Stronga

100% Stronga-made hooklift equipment.

That means every Stronga hooklift trailer is a product of our passion to produce world-class transport solutions that bring greater working efficiency. Partnership spirit defines what is truly important to Stronga. We energetically strive to work with customers and we take responsibility for our successes and failures.

Power + Speed = Efficiency

Square up to more power and more speed with a Stronga hooklift trailer.

Large scale operations call for intelligently applied power to maximise uptime while reducing operating costs. When coupled with high speed ability, the enormous lifting and tipping power of HookLoada increases capacity to maximise efficiency; reducing fuel usage, maintenance costs and operator hours.

Ultra light. Extra strong.

Stronga continue to reduce overall weight, increase durability and maximise service life with the use of high strength steels in high stress areas of the hooklift trailer. Hard-wearing Hardox wear plates provide great torsional strength and a durable long life structure which translates into a low cost of ownership and high resale value.

Low chassis profile stability

The super low chassis profile minimises the uploading angle, reducing the power required to upload roll off containers. With a low centre of gravity, HookLoada delivers even better cornering stability, manoeuvrability and increased efficiency because higher containers can be handled.

Re-define loading capacity

Our mission is to deliver hooklift trailers that are more efficient than ever before.

With a revolutionary chassis designed to optimise container length, we believe we are taking positive steps in achieving our goal of re-defining loading capacity. The extra long hook tower stroke now allows you to load even longer containers for new levels of efficiency in hooklift transport.

Hooklift trailer series

Technical details
Model HookLoada HL014 HookLoada HL140 HookLoada HL160 HookLoada HL180 HookLoada HL210 HookLoada HL211 HookLoada HL250 HookLoada HL260 HookLoada HL300
Gross weight (40km/h) 18000kg 18000kg 20000kg 22000kg 22000kg 22000kg 31000kg 31000kg 34000kg
Tare weight ca. 3500kg ca. 4000kg ca. 4500kg ca. 5000kg ca. 5500kg ca. 5250kg ca. 6900kg ca. 7200kg ca. 8000kg
Maximum hooking load 14000kg 14000kg 16000kg 18000kg 21000kg 21000kg 25000kg 26000kg 30000kg
Maximum tipping load 14000kg 14000kg 16000kg 18000kg 21000kg 21000kg 25000kg 26000kg 30000kg
Drawbar load 3000kg (4000kg*) 3000kg (4000kg*) 3000kg (4000kg*) 3000kg (4000kg*) 3000kg (4000kg*) 3000kg (4000kg*) 3000kg (4000kg*) 3000kg (4000kg*) 3000kg (4000kg*)
Hook height 1570mm 1570mm 1570mm 1570mm 1570mm 1570mm 1570mm 1570mm 1570mm
Hook tower Tiltable Tiltable Telescopic Telescopic Telescopic Telescopic Telescopic Telescopic Telescopic
Hook stroke - - 1100mm 1100mm 1200mm 1100mm 1200mm 1200mm 1350mm
Sprung suspension capacity 14000kg 21000kg 21000kg 21000kg 21000kg 21000kg 31500kg 36000kg 48000kg
Main cylinders 1 unit 2 units 2 units 2 units 2 units 2 units 2 units 2 units 2 units
Oil requirement 12,5 litres 14 litres 18 litres 20 litres 25.5 litres 22.5 litres Own hydraulic Own hydraulic Own hydraulic
Minimum draft requirement 100HP 100HP 110HP 120HP 140HP 140HP 200HP 200HP 200HP
Hitch height 510-550-590mm 510-550-590mm 510-550-590mm 510-550-590mm 510-550-590mm 510-550-590mm 510-550-590mm 510-550-590mm 510-550-590mm
Hydraulic pressure required 200 bar 200 bar 200 bar 200 bar 200 bar 200 bar 270 bar 270 bar 270 bar
Total length 6400mm 6510mm 6980mm 7620mm 7930mm 7620mm 8260mm 8830mm 9350mm
Maximum width (standard wheels) 2550mm 2550mm 2550mm 2550mm 2550mm 2550mm 2710mm 2710mm 2710mm
Standard wheels 560/45 R22.5 455/40 R22.5 560/45 R22.5 560/45 R22.5 560/60 R22.5 560/60 R22.5 560/60 R22.5 560/60 R22.5 560/60 R22.5
Connections to tractor 3 x double acting 3 x double acting 3 x double acting 3 x double acting 3 x double acting 3 x double acting - - -
Standard DIN 30722 DIN 30722 DIN 30722 DIN 30722 DIN 30722 DIN 30722 DIN 30722 DIN 30722 DIN 30722

The information shown on this web page is representative of a “DIN Standard” hook-lift trailer. Specifications and dimensions may vary depending on the customer’s local market preferences and regional laws. Specification, weights and payload may vary on fast tow models. As we are continually improving our products, technical details, masses and measurements are given as reference values only.

* 4000kg with K-80 ball towing hitch
