HookLoada HL160
High-quality tandem-axle trailer
Stronga hold a reputation for manufacturing the highest quality tandem-axle trailers available in the hooklift market. The HL160 model follows suit with a design that is packed full of reliability, innovation, creativity and expertise.
Think reliable. Think HL160.
We have been building hook lift trailers for decades, and we market an extraordinarily wide range of well-proven products, each of which is tailored to your specific tractor and application. Fitting in to the lower end of the HookLoada range, the HL160 model reliably mounts containers up to 16 tonnes in weight.
Light-touch but tough
The HL160 hook lift trailer typically operates in agriculture, construction, landscaping and municipal applications. With the focus on an ultra-light dead weight, this mid-range hook lift trailer was built to provide a fantastic 16 tonne payload to handle roll-off containers up to 6100mm in length. That’s great power from a compact design.
The special hydraulic container locking system comes as standard, while operation from the tractor cab is only made possible using the easy-to-use electric remote control.
Meeting professional demands
HL160 is the model which meets the quality and equipment availability demands of the mid-output professional operator. As well as being flexible by design, this hook lift trailer has maximum strength and rigidity in terms of deformation and twisting. Through clever construction and the use of high strength steels, HL160 remains completely stable during both tipping and hooking operations.
Contact Stronga today to discuss which hook lift is best suited to your project.
Key Benefits
- Stable cornering profile
- Low container loading angle
- Clean emptying across all materials
- Compact with good capacity
Standard Specifications
4840kg @ 40km/h
3550kg @ 65km/h
*Container locking design varies according to market.
Optional Equipment
BPW high speed commercial axle, 410x180 brake axles, 120x120mm square beam, 10 stud.
BPW auto-centring free steering rear axle, 420x180 brake axles, 120x120mm square beam.
CommandSteer™ - in-cab control – excellent manoeuvrability in reverse – free steering travelling forwards. Watch video >
Load sensing for hydraulic brakes.
Load Sensing Valve (LSV) for air brakes.
Dual air and hydraulic brake system.
Load Sensing Valve (LSV) for hydraulic suspension.
Air suspension with height controlling valve (AirLoada™ comes as standard when you buy STR-409). Watch video >
Hydraulic suspension for optimal axle travel. Watch video >
Hydraulic drawbar for easy levelling and high comfort. Watch video >
Electronic Power Steering (EPS). Watch video >
Independent hydraulic system with PTO, 130 l/min pump. Distributor operated by remote control.
Two pipes to the tractor hydraulic system with distributor operated by remote control.
Auxiliary hydraulic connections with changeover valve at the rear of the hooklift.
Auxiliary hydraulic connections with electrical changeover valve at the rear of the hook lift system.
Auxiliary connections with changeover valve on the hook tower.
Auxiliary connections with electrical changeover valve on the hook tower.
QuickLoada™ fast tipping and unloading system. Watch video >
Two super-bright LED adjustable rear working lights.
Full length ultra-light aluminium mudguards.
Hard plastic quarter mudguards, front and rear of the hook lift system.
Aluminium side protection rails.
Bolted-on ball towing hitch, Scharmuller type, 80mm diameter.
Swivel towing hitch, Scharmuller type. 50mm diameter eyelet.
Rear towing eyelet mounting plate for VBG rear drawbar.
*Available for selected markets only.
Rear mounted hydraulic brake connection.
Rear mounted light connection 7-pin socket.
Rear real-time video camera with screen display.
| Model | HookLoada HL160 |
|---|---|
| Gross weight (40km/h) | C.D. |
| Tare weight | ca. 4000kg |
| Maximum hooking load | 16000kg |
| Maximum tipping load | 16000kg |
| Drawbar load | 3500kg (4000kg) |
| Hook height | C.D. |
| Hook tower | Telescopic |
| Hook stroke | 1100mm |
| Sprung suspension capacity | C.D. |
| Main cylinders | 2 units |
| Oil requirement | 18 litres |
| Minimum draft requirement | 120HP |
| Hitch height | 510mm |
| Hydraulic pressure required | 200 bar |
| Total length | 6950mm |
| Maximum width (standard wheels) | 2550mm |
| Standard wheels | 560/45 R22,5 |
| Connections to tractor | 3 x double acting |
| Standard | C.D. |
C.D. = Country Dependent
All weights and measurements are subject to hook trailer specification and regional laws. Specification, weights and payload may vary on fast tow models. As we are continually improving our products, technical details, masses and measurements are given as reference values only.

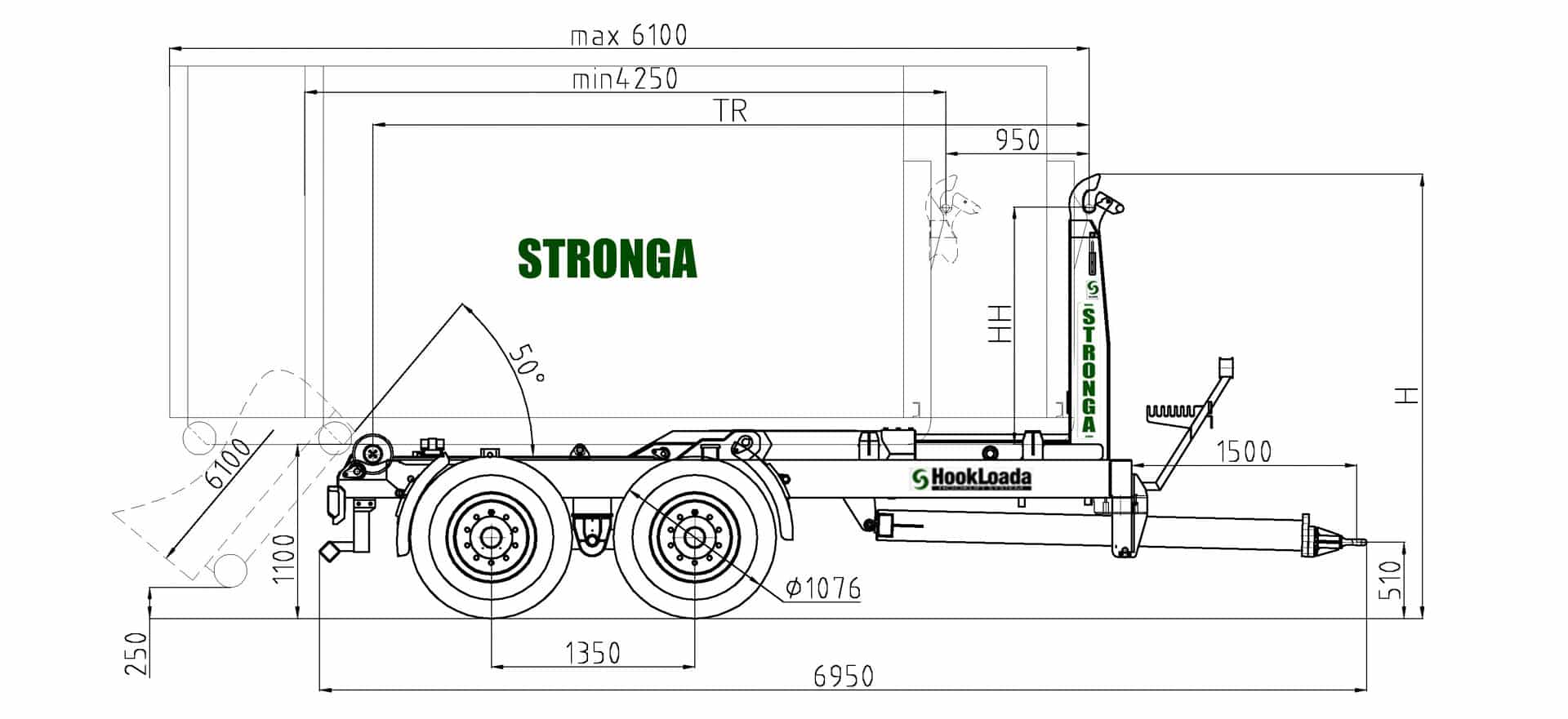

On datasheet below: H = Total height; HH = Hook height; TR = Tower to roller length.
