HookLoada HL140

Hooklift equipment proven through decades of hard work

Formidable, Resilient & Compact

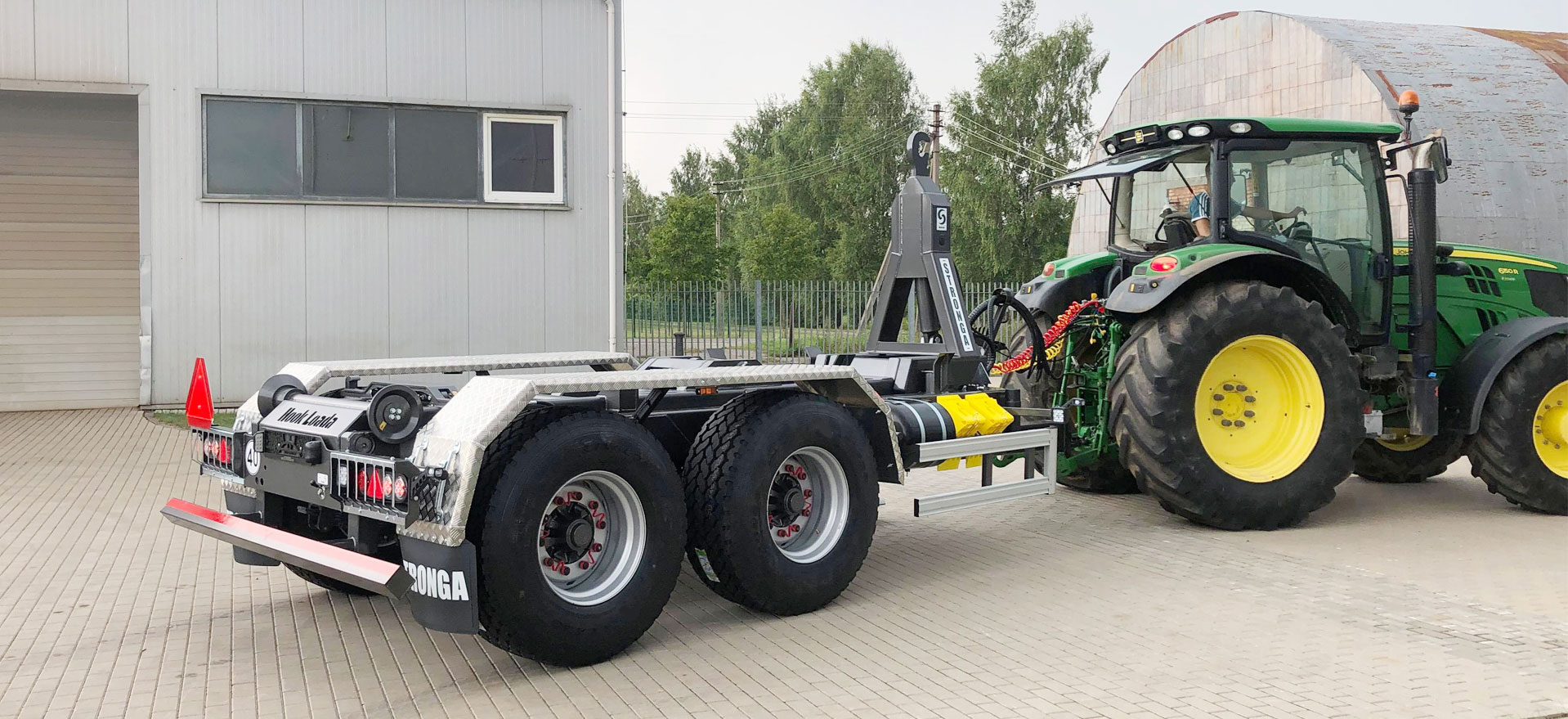

The HL140 hook loader is resilient, compact and well proven across a wide range of industries. HookLoada HL140 is suited to tractors from 80-140HP. Containers of 5500mm optimum length can be transported at high speed, increasing efficiency and productivity. With a foldable tower, the HL140 hook loader has a very low container loading angle which minimises stress on the system.

Excellent manoeuvrability. Impressive reliability.

For customers wanting a hook loader with excellent manoeuvrability, impressive reliability and medium lifting capacity, the HL140 model is the ideal solution. Using HL140, operating costs can be better managed in terms of reducing fuel bills, maintenance costs and labour requirements per tonne of material handled. Become an innovator. Take the lead with Stronga hook loader.

Planned approach to transport

By taking a fresh look at transport with a planned and considered approach, customers can make both capital and operational savings with the HL140 hook loader trailer. Professional contractors continue to find the multi-purpose nature of this hook loader trailer as a huge advantage over standard single-purpose farm trailers. Discover your potential fuel savings below:

• Avoid the fuel consumption of operating several tractors and several single-purpose trailers by using 1 tractor and 1 multi-purpose HookLoada.
• Enjoy excellent fuel efficiency with well-designed tyre and suspension configurations lowering your overall carbon footprint.
• Insulate your business against rising fuel prices in the future by using less fuel up-front.

Key Benefits

Low roller height on standard wheels – 1000mm.

  • Good stability
  • Low loading height
  • Low stable platform
Good tipping angle – 48°.

  • Powerful twin cylinder tipping
  • Low oil requirement
  • Good heaping ability
Hook container length – 4830 - 5800mm. Optimal container length - 5070mm.

  • Compact scale container
  • Good loading visibility
Length from tower to rear roller – 4280mm.

  • Compact and manoeuvrable
  • Smaller turning circle

Standard Specifications

BPW 410x120 brake axles, 110×110mm square beam.
Shockproof rubber mount drawbar.
455/40 R22.5. Load rating index: 163D.
Hydraulic container locking clamps.
*Container locking design varies according to market.
Hydraulic rear axle stabilisers.
3 position plate for bolting towing eyelet.
Bolt-on swivel towing hitch. STR type. 50mm diameter eyelet.
Rear removable bumper.
12 V electric system. Sealed loom. All lights super-bright LED.
Cable-type hand brake.

Optional Equipment

Load sensing for hydraulic brakes.
Load Sensing Valve (LSV) for air brakes.
EBS and ABS braking systems; RSS roll stability support (STR-304 not required).
Automatic slack adjusters.
Smart-board from WABCO. Only available with STR-306.
Auxiliary hydraulic connections with changeover valve at the rear of the hook loader.
Auxiliary connections on the hook tower with changeover valve.
Lockable steel toolbox. Various sizes available.
Contact us for more information >
Hard plastic quarter mudguards, front and rear of the hooklift trailer.
Full length ultra-light aluminium mudguards.
Aluminium side protection rails.
Hydraulically extendable rear bumper.
Manually extendable rear bumper.
Multi-position sprung drawbar for high comfort at speed.
Bolted-on ball towing hitch, Scharmuller type, 80mm diameter.
Swivel towing hitch, Scharmuller type. 50mm diameter eyelet.
Two super-bright LED adjustable rear working lights.
Other tyre brands and tyre sizes available.
Contact us for more information >
Rear towing eyelet mounting plate for VBG rear drawbar.
*Available for selected markets only.
VBG-coupling, made by Stronga.
Automatic rear coupling D40 (STR-1002 required).
Rear mounted hydraulic brake connection.
Rear mounted light connection 7-pin socket.
Two LED flashing lights encased in secure housing at the rear of the trailer.
Signal light positioned at the front of the frame; showing that the steering system is in the centre.
Rear real-time video camera with screen display.
Model HookLoada HL140
Gross weight (40km/h) 18000kg
Tare weight ca. 4000kg
Maximum hooking load 14000kg
Maximum tipping load 14000kg
Drawbar load 3000kg (4000kg*)
Hook height 1570mm
Hook tower Tiltable
Hook stroke -
Sprung suspension capacity 21000kg
Main cylinders 2 units
Oil requirement 14 litres
Minimum draft requirement 100HP
Hitch height 510-550-590mm
Hydraulic pressure required 200 bar
Total length 6510mm
Maximum width (standard wheels) 2550mm
Standard wheels 455/40 R22.5
Connections to tractor 3 x double acting
Standard DIN 30722

The information shown on this web page is representative of a “DIN Standard” HL140 hook-lift trailer. Specifications and dimensions may vary depending on the customer’s local market preferences and regional laws. Specification, weights and payload may vary on fast tow models. As we are continually improving our products, technical details, masses and measurements are given as reference values only.

* 4000kg with K-80 ball towing hitch
