HookLoada HL180
Multi-modal world of HookLoada
HL180 is the most popular entry point into the multi-modal world of HookLoada. With a 30% bigger payload than HL014, the 18 tonne HookLoada is perfect for medium-size contractors who need extra capacity for only a small extra investment. Stronga’s classic 18 tonne HookLoada delivers reliability and performance like no other; leading the market with a stronger, lighter and lower design; enabling greater payload at speed.
Pretty. Epic.
From agriculture to construction
HookLoada HL180 continues to prove one of our most popular models with huge numbers of satisfied users across the globe. Clients typically extend the use of this versatile hook lift system across a wide range of sectors from agriculture to waste management and construction.
Perfect cross-sector hybrid
For clients with modern diversified businesses straddling different sectors, the 18 tonne Stronga hook lift system is the perfect cross-sector hybrid. Learn more about the design of the HL180 model in the video below.
Key Benefits
- Stable cornering profile

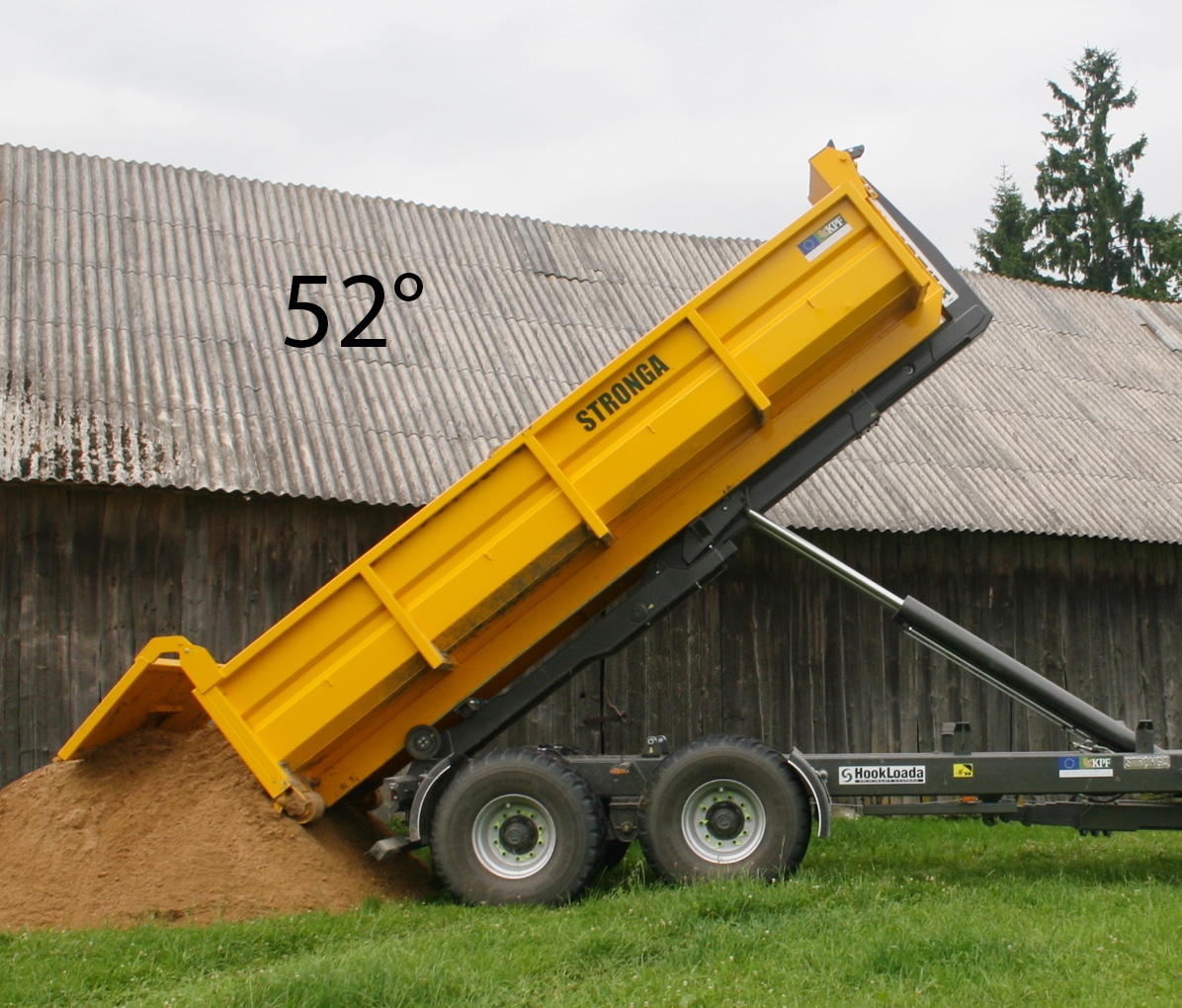

- Low container loading angle
- Great heaping ability
- Clean emptying across all materials
- Access to the main, standard container market
- Compact while offering good capacity
- Cross over to the ISO / intermodal world
Standard Specifications
4840kg @ 40km/h
3550kg @ 65km/h
*Container locking design varies according to market.
Optional Equipment
BPW high speed commercial axle, 410x180 brake axles, 150x150 - 16mm square beam, 10 stud.
BPW auto-centring free steering rear axle, 420x180 brake axles, 150x150 - 16mm square beam, 10 stud, 2150mm track.
CommandSteer™ - in-cab control – excellent manoeuvrability in reverse – free steering travelling forwards. Watch video >
Load sensing for hydraulic brakes.
Load Sensing Valve (LSV) for air brakes.
Dual air and hydraulic brake system.
Load Sensing Valve (LSV) for hydraulic suspension.
24t parabolic sprung suspension, 1810mm distance between axles.
32t parabolic sprung suspension, 1810mm distance between axles.
Air suspension with height controlling valve (AirLoada™ comes as standard when you buy STR-409). Watch video >
Hydraulic suspension for optimal hook loader axle travel. Watch video >
Hydraulic drawbar for easy levelling and high comfort. Watch video >
Electronic Power Steering (EPS). Watch video >
Independent hydraulic system with PTO, 130 l/min pump. Distributor operated by remote control.
Two pipes to the tractor hydraulic system with distributor operated by remote control.
Auxiliary hydraulic connections with changeover valve at the rear of the hooklift.
Auxiliary hydraulic connections with electrical changeover valve at the rear of the hook lift system.
Auxiliary connections with changeover valve on the hook tower.
Auxiliary connections with electrical changeover valve on the hook tower.
QuickLoada™ fast tipping and unloading system. Watch video >
Two super-bright LED adjustable rear working lights.
Full length ultra-light aluminium mudguards.
Hard plastic quarter mudguards, front and rear of the hook lift system.
Aluminium side protection rails.
Bolted-on ball towing hitch, Scharmuller type, 80mm diameter.
Swivel towing hitch, Scharmuller type. 50mm diameter eyelet.
Rear towing eyelet mounting plate for VBG rear drawbar.
*Available for selected markets only.
Rear mounted hydraulic brake connection.
Rear mounted light connection 7-pin socket.
Rear real-time video camera with screen display.
| Model | HookLoada HL180 |
|---|---|
| Gross weight (40km/h) | C.D. |
| Tare weight | ca. 4900kg |
| Maximum hooking load | 18000kg |
| Maximum tipping load | 18000kg |
| Drawbar load | 3500kg (4000kg) |
| Hook height | C.D. |
| Hook tower | Telescopic |

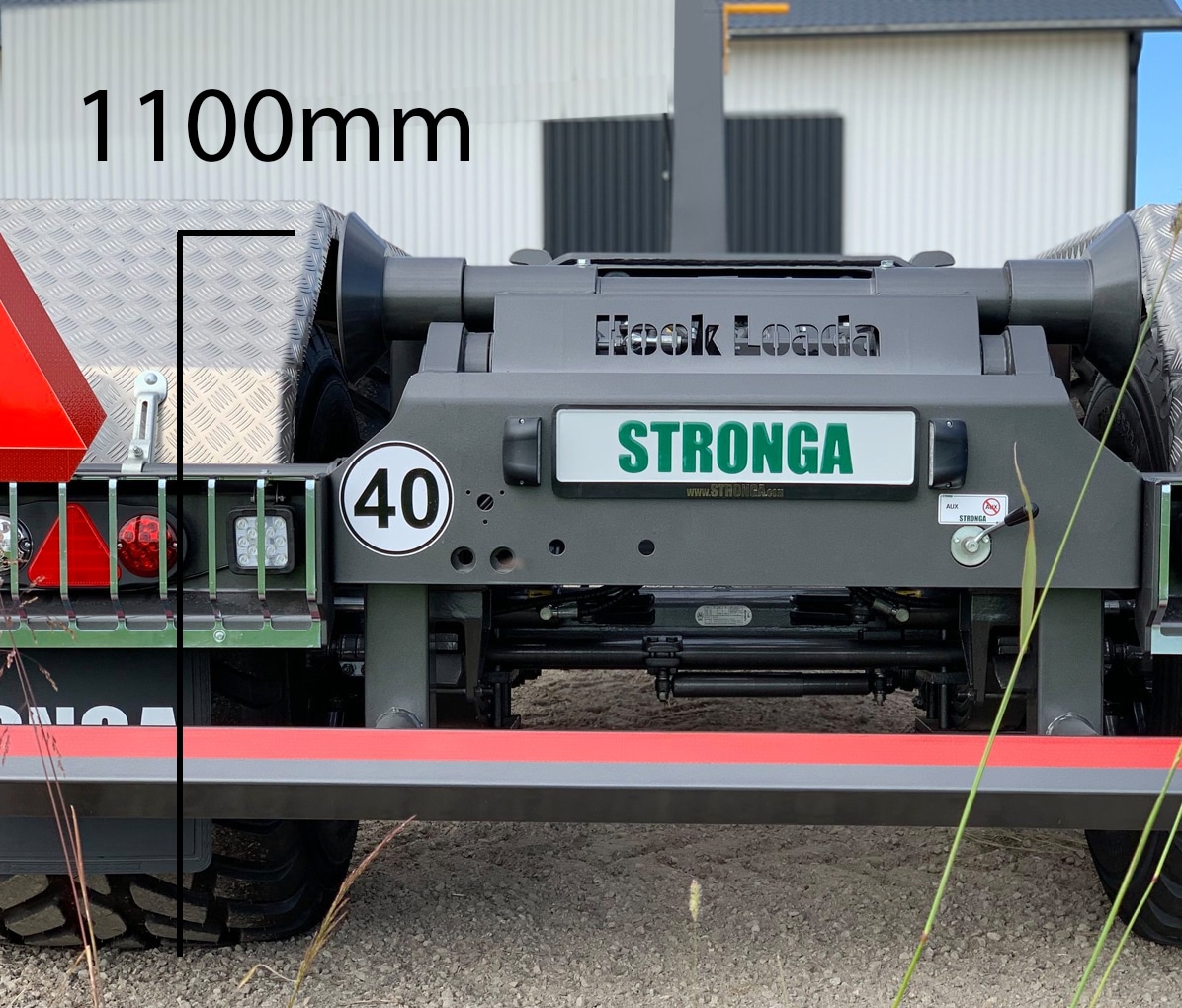

| Hook stroke | 1100mm |
| Sprung suspension capacity | C.D. |
| Main cylinders | 2 units |
| Oil requirement | 20 litres |
| Minimum draft requirement | 120HP |
| Hitch height | 510mm |
| Hydraulic pressure required | 200 bar |
| Total length | 7580mm |
| Maximum width (standard wheels) | 2550mm |
| Standard wheels | 560/45 R22,5 |
| Connections to tractor | 3 x double acting |
| Standard | C.D. |
C.D. = Country Dependent
All weights and measurements are subject to hook trailer specification and regional laws. Specification, weights and payload may vary on fast tow models. As we are continually improving our products, technical details, masses and measurements are given as reference values only.

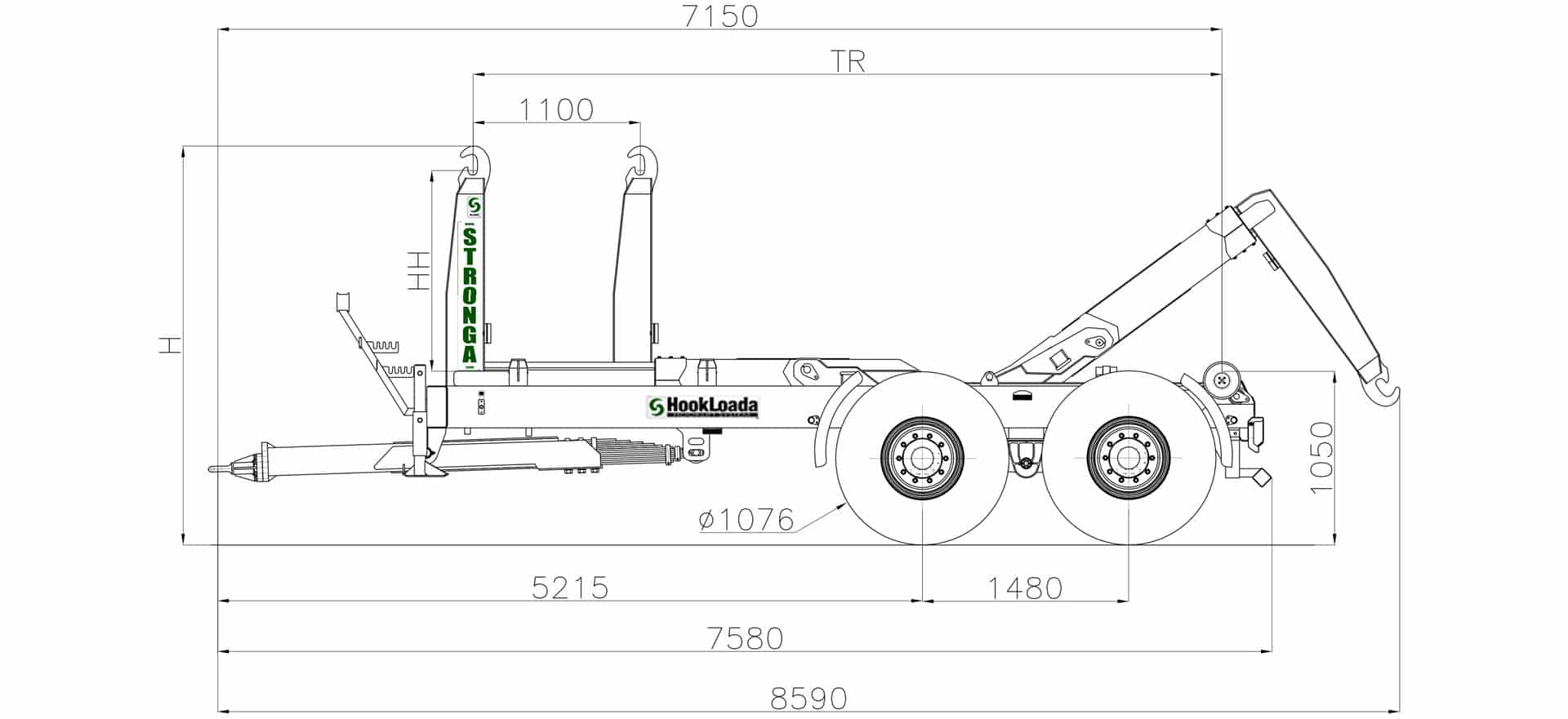

On datasheet below: H = Total height; HH = Hook height; TR = Tower to roller length.
