HookLoada HL300

Unbeatable 30 tonne capacity; 20% bigger than HL250

The power you need.

Delivered exactly when you need it.

The HL300 model offers mega transport capacity on and off road; reducing fuel costs and saving money whilst improving your operational efficiency. Modern large-scale businesses continue to enjoy the 30 tonne lifting and tipping capability of this breath-takingly brilliant hooklift.

Our 30 tonne HookLoada is built to perform and designed to last.

Flawless performer

Getting the job done isn’t as simple as it once was.

Tighter operating windows and intensive practices mean that is essential for the hooklift trailers you operate to perform flawlessly. In this demanding world you need reliable transport equipment; that is all the more reason to choose Stronga - the world’s leading manufacturer in reliable, well-proven, long life hooklift equipment.

More power for your performance

Today; pushing performance is more important than ever before

Key benefits of HL300

(1) Mega efficient. Mega capacity. The HL300 model is the largest scale hooklift available in the Stronga range with 20% bigger payload capacity than the HL250 model.
(2) Highest capacity system. HL300 customers can use bulk capacity containers for temporary storage to keep harvesters operating at full capacity, all day, every day.
(3) Flexible with potential. Stronga hooklift customers can accumulate high capacity containers over time, spreading the cost after the initial investment in the HL300 trailer.

Learn more about the 30 tonne hooklift in the video below.

Key Benefits

Low roller height on standard wheels – 1250mm.

  • Lowest 30 tonne hooklift in the market
  • Excellent safety and stability
Excellent hook lift trailer tipping angle – 50°.

  • High capacity dumping ability
  • High bulk output deposits

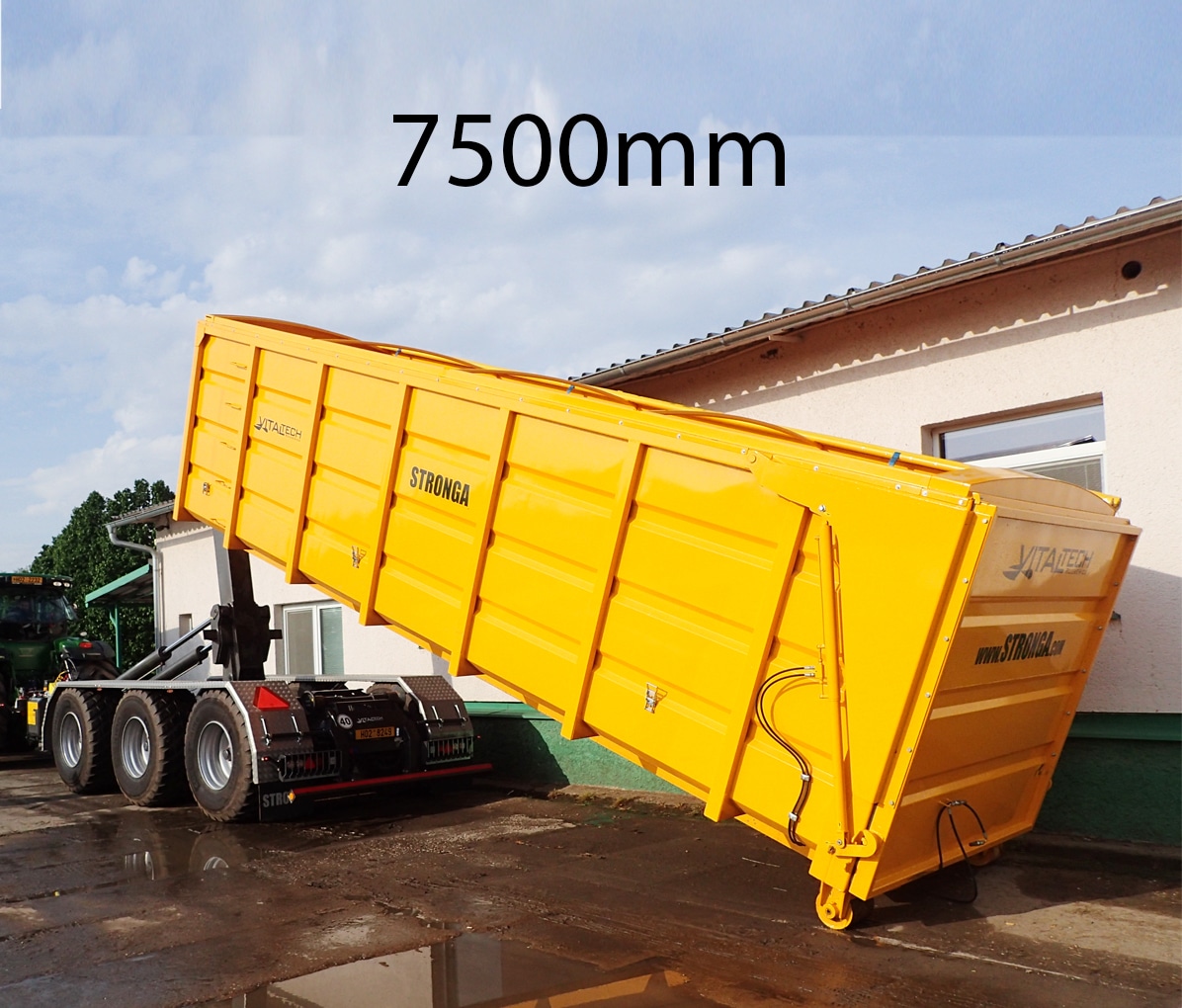

Hook container length - 6000 - 8300mm. Optimal container length – 7640mm.

  • Extra length allows extra loading capacity
  • 20% bigger payload than HL250

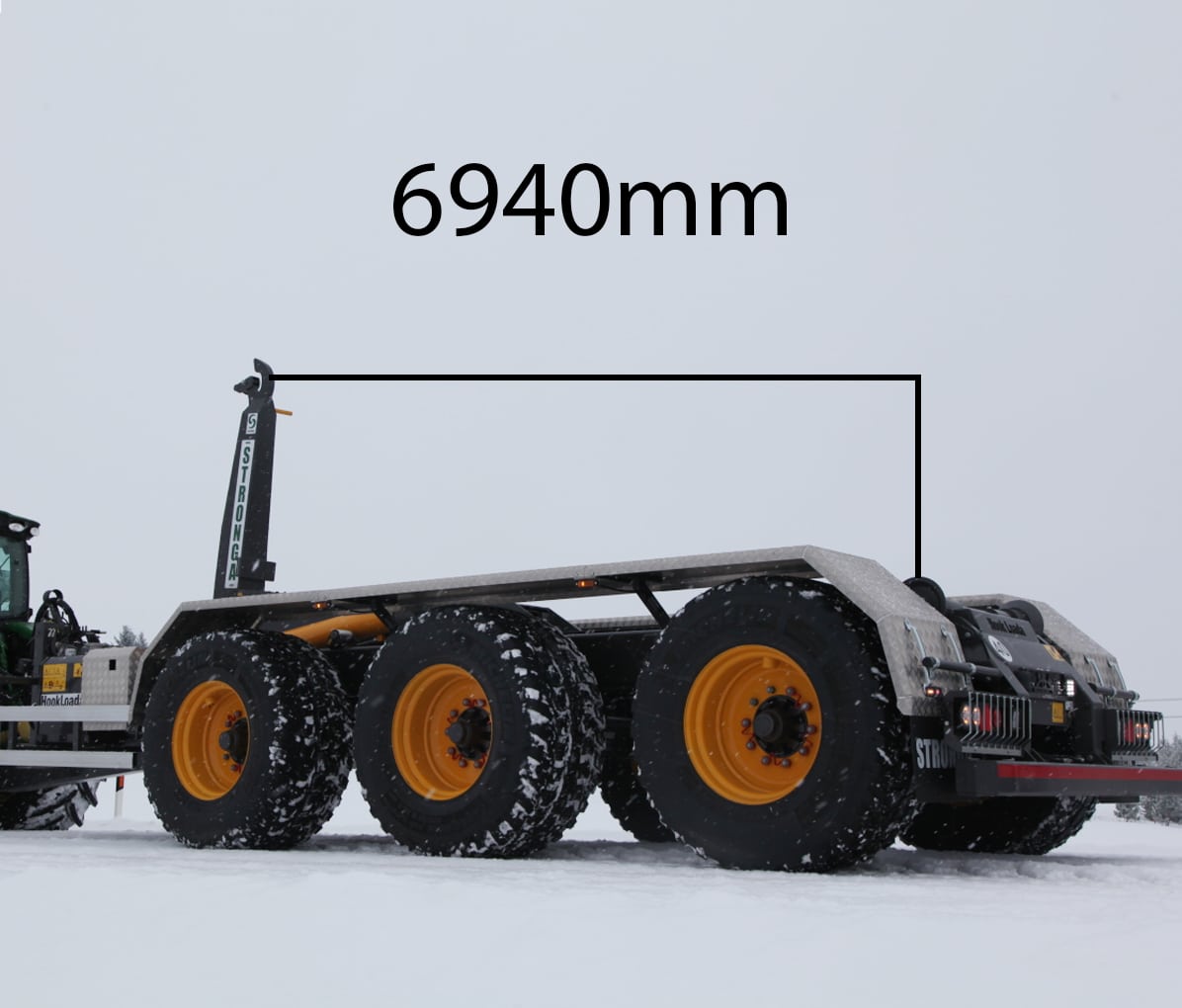

Length from tower to rear roller - 6680mm.

  • Ideal for modern high speed large scale tractors

Standard Specifications

BPW free steering front axle, 410x180 brake axles, 150x150mm square beam. 10 stud, 2150mm track.
BPW free steering rear axle, 410x180 brake axles, 150x150mm square beam. 10 stud, 2150mm track.
48000kg parabolic sprung suspension. Distance between axles - 1810mm.
Shockproof rubber mount drawbar.
Cable-type hand brake.
560/60 R22.5 Michelin CargoXBib radial tyres. 10 stud heavy-duty wheels.
Hydraulic container locking clamps.
*Container locking design varies according to market.
Hydraulic axle stabilisers at the rear of the hooklift.
Two pipes to the tractor hydraulic system with distributor operated by remote control.
12 V electric system. Sealed loom. All lights super-bright LED.
3 position plate for bolting towing eyelet.
Swivel towing hitch. STR type. 50mm diameter eyelet.
Removable bumper at the rear of the hooklift trailer.

Optional Equipment

CommandSteer™ - in-cab control – excellent manoeuvrability in reverse – free steering travelling forwards. Only on rear axle. Watch video >
Load sensing for hydraulic brakes.
Load Sensing Valve (LSV) for air brakes.
Dual air and hydraulic brake system.
EBS and ABS braking systems; RSS roll stability support (STR-304 not required).
Automatic slack adjusters.
Load Sensing Valve (LSV) for hydraulic suspension.
Smart-board from WABCO. Only available with STR-306.
Electronic Power Steering (EPS). Watch video >
Air suspension with height controlling valve (AirLoada™ comes as standard when you buy STR-409). Watch video >
Hydraulic suspension for optimal axle travel. Watch video >
Multi-position sprung drawbar for high comfort at speed.
Hydraulic drawbar for easy levelling and high comfort. Watch video >
Front lift axle - Only with air or hydraulic suspensions. Watch video >
Other tyre brands and tyre sizes available.
Contact us for more information >
Auxiliary hydraulic connections with changeover valve at the rear of the hooklift.
Auxiliary hydraulic connections with electrical changeover valve at the rear of the hooklift.
Auxiliary connections with changeover valve on the hook tower.
Auxiliary connections with electrical changeover valve on the hook tower.
1500mm longer hook stroke.
QuickLoada™ fast tipping and unloading system. Watch video >
Two super-bright LED adjustable working lights at the rear of the hooklift.
Full length ultra-light aluminium mudguards.
Hard plastic quarter mudguards, front and rear.
Lockable steel toolbox. Various sizes available.
Contact us for more information >
Aluminium side protection rails.
Hydraulically extendable rear bumper.
Manually extendable rear bumper.
PowerBoosta™ – pair of booster cylinders, increasing tipping and uploading cycle power, removing the requirement for PTO, pump and oil tank. Watch video >
Bolted-on ball towing hitch, Scharmuller type, 80mm diameter.
Swivel towing hitch, Scharmuller type. 50mm diameter eyelet.
Rear towing eyelet mounting plate for VBG rear drawbar.
*Available for selected markets only.
VBG-coupling, made by Stronga.
Automatic rear coupling D40 (STR-1002 required).
Rear mounted hydraulic brake connection.
Rear mounted light connection 7-pin socket.
Two LED flashing lights encased in secure housing at the rear of the trailer.
Signal light positioned at the front of the frame; showing that the steering system is in the centre.
Rear real-time video camera with screen display.
Model HookLoada HL300
Gross weight (40km/h) 34000kg
Tare weight ca. 8000kg
Maximum hooking load 30000kg
Maximum tipping load 30000kg
Drawbar load 3000kg (4000kg*)
Hook height 1570mm
Hook tower Telescopic
Hook stroke 1350mm
Sprung suspension capacity 48000kg
Main cylinders 2 units
Oil requirement Own hydraulic
Minimum draft requirement 200HP
Hitch height 510-550-590mm
Hydraulic pressure required 270 bar
Total length 9350mm
Maximum width (standard wheels) 2710mm
Standard wheels 560/60 R22.5
Connections to tractor -
Standard DIN 30722

The information shown on this web page is representative of a “DIN Standard” HL300 hook-lift trailer. Specifications and dimensions may vary depending on the customer’s local market preferences and regional laws. Specification, weights and payload may vary on fast tow models. As we are continually improving our products, technical details, masses and measurements are given as reference values only.

* 4000kg with K-80 ball towing hitch
