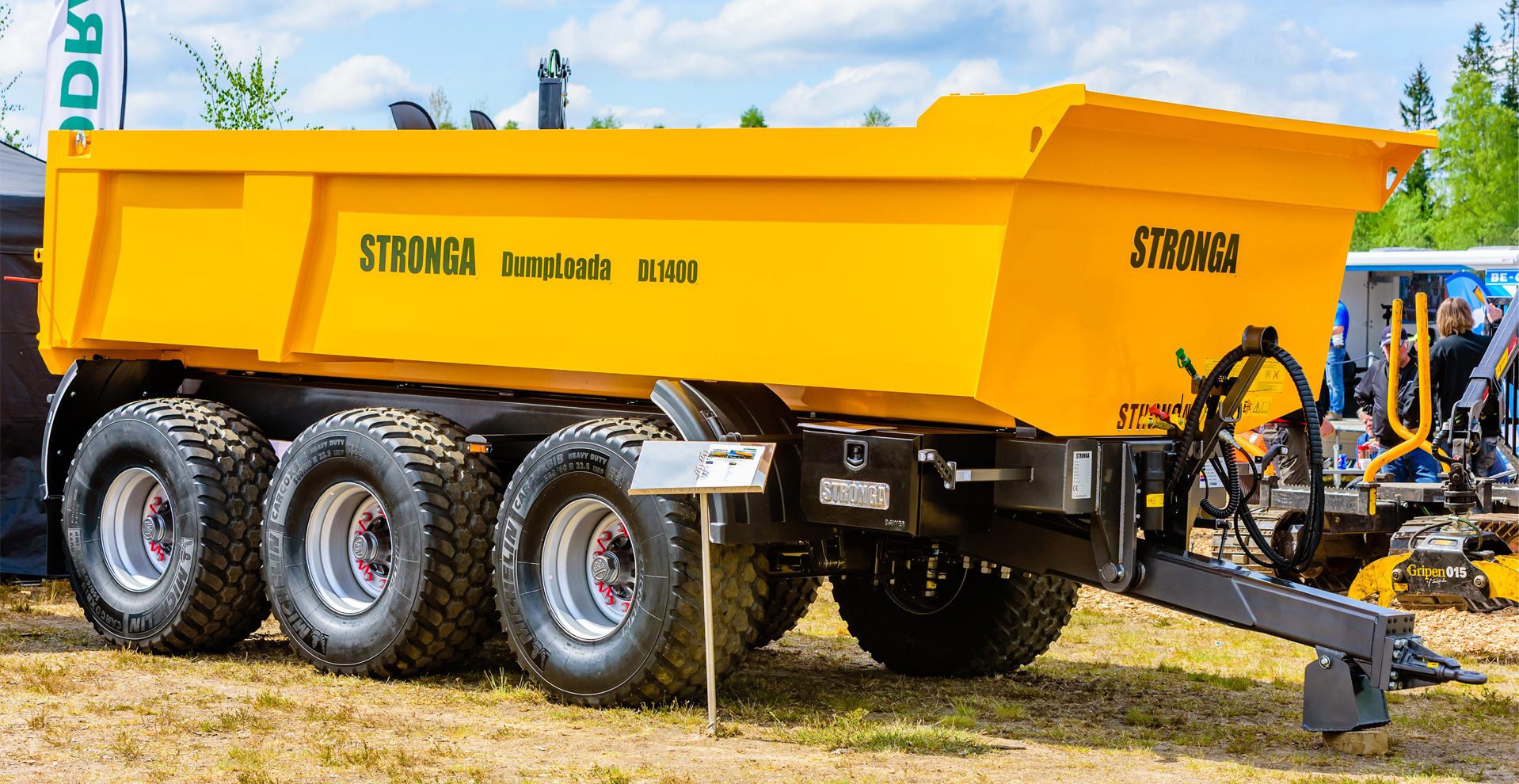

DumpLoada DL1400

The undisputed king of the construction sector

What’s inside DumpLoada DL1400?

Massive 27 tonne maximum payload ✔; 36 tonne sprung suspension capacity ✔; full Hardox, monocoque body ✔; BPW commercial axles ✔; market-leading tyres with other brands also available ✔; highly reliable running gear ✔; well developed, well proven options, including hydraulic and air suspensions and hydraulic drawbars ✔

So, what’s inside DumpLoada DL1400? The answer is market-leading quality, unbeatable payload and unrivalled power.

Big output. Big productivity gains.

Big potential.

Designed to meet the demands of the most extreme, high output operations, the DL1400 model is a robust, heavy-duty dump trailer that excels on large-scale construction projects. Using this unequalled beast, you'll move more materials faster, work harder in tough conditions, and navigate difficult terrain with ease.

The DL1400 trailer is designed to work in the most demanding conditions where performance, in terms of transport capacity and power, make all the difference.

Design with intent

Ultra-light, high-grade, wear-resistant body

Full Hardox, monocoque body

King of productivity

Kick-start efficiency with a 27t payload

Go where others can’t follow

with DumpLoada DL1400

The frame and body of the DL1400 trailer utilises lightweight, high-grade, wear-resistant Hardox 450 steel that reduces the total weight of the trailer, meaning less horsepower is required to move heavy materials. Ideal for construction sites, mining and quarrying, DL1400 trailers offer excellent driving stability, equal weight distribution and superior traction along with additional load capacity and better productivity.

Go where others can't follow with DumpLoada DL1400.

Flexible &, agile, heavy-duty dump trailer

High performance on & off-road

The DL1400 tipper trailer has a flexible and agile undercarriage, ensuring all wheels maintain permanent ground contact so you can achieve excellent performance in off-road conditions. A precision-engineered chassis and body shape provides a class-leading low centre of gravity which increases lateral stability and eliminates the need for wide, low profile tyres.

Standard Specifications

BPW all rigid commercial axles, 410x180 brake axles, 150x150mm square beam, 10 stud.
31,5t parabolic sprung suspension. 1525mm distance between dump trailer axles. Springs under axles.
Multi-position sprung drawbar for high comfort at speed.
445/65 R22,5 radial tyres. Load rating per tyre:

7000 kg @ 105 km/h
Hard plastic quarter mudguards, front and rear.
2 x rear rubber mud-flaps.
Multi-position rear removable round bumper.
Single top-hung rear dump trailer door with hydraulic flip back.
Brackets with lock for the rear door in the front of the heavy duty dump trailer box.
3 position plate for bolting towing eyelet.
Swivel towing hitch. STR type. 50mm diameter eyelet.
HARDOX 450 steel. 8mm heavy duty dump trailer floor. 6mm sides.
12 V electric system. Sealed loom. All lights super-bright LED.
Cable-type hand brake.
Suspended drawbar shoe with stowage point.

Optional Equipment

BPW free steering rear axle, 420x180 brake axles, 150x150mm square beam, 10 stud, 2150mm track.
BPW free steering front axle, 420x180 brake axles, 150x150mm square beam, 10 stud, 2150mm track.
Load sensing for hydraulic brakes.
Load Sensing Valve (LSV) for air brakes.
Dual air and hydraulic brake system.
Automatic slack adjusters.
Load Sensing Valve (LSV) for hydraulic suspension.
Bolted-on ball towing hitch, Scharmuller type, 80mm diameter.
Swivel towing hitch, Scharmuller type. 50mm diameter eyelet.
Air suspension with height controlling valve.
Hydraulic suspension for optimum axle travel. Watch video >
Front lift axle - Only with air or hydraulic dump trailer suspensions. Watch video >
Hydraulic drawbar for easy tipper trailer levelling and high comfort. Watch video >
Electronic Power Steering (EPS) for excellent efficiency and safety in heavy material applications.
Other tyre brands and tyre sizes available.
Contact us for more information >
Lockable steel toolbox. Various sizes available.
Contact us for more information >
Aluminium side protection rails.
Two super-bright LED working lights at the rear of the heavy duty dump trailer.
Rear towing eyelet mounting plate for VBG rear drawbar.
Rear mounted hydraulic brake connection.
Rear mounted light connection 7-pin socket.
Rear real-time video camera with screen display.
Model DumpLoada DL1400
Gross weight 34000kg
Tare weight ca. 7000kg
Maximum Payload 27000kg
Drawbar load 3000kg (4000kg*)
Sprung suspension capacity 31500kg
Standard transport capacity 19m³
Lift capacity of step 1 at 180 bar 78,5 tonnes
Oil requirement 80 litres
Minimum draft requirement 140kW (190HP)
Hitch height 510-550-590mm
Bottom thickness 8mm HARDOX 450
Side thickness 6mm HARDOX 450
Body height inside 1300mm
Body length inside 5980mm
Total length 7570mm
Total height 2875mm
Total height at 65˚ 7525mm
Maximum width (standard wheels) 2550mm
Standard wheels 445/65 R22,5
Colour Yellow
Speed 40km/h

All weights and measurements are subject to heavy duty dump trailer specification and regional laws. Specification, weights and payload may vary on fast tow models. As we are continually improving our products, technical details, masses and measurements are given as reference values only.
