HookLoada HL260

25% more payload capacity than the HL210 model

Discover ultimate efficiency

The HL260 model is an extra-long tri-axle roll off trailer constructed for pure power with a massive 26 tonne hooking and tipping potential. Maximise your return in investment with a trailer that is built with intelligence and experience to provide every possible advantage in the field and on the road. HookLoada HL260 always holds its considerable value.

Grab your keys – it’s time to discover ultimate efficiency.

Design with intent

Reducing labour per tonne transported, improving efficiency and being more productive with existing resources. With rapid container exchange, the 26 tonne hookloader reduces precious hours wasted waiting during loading. Operating one large capacity, 26 tonne roll off trailer has lower costs than keeping several tractors and trailers roadworthy with tyres, brakes, suspensions and more, all requiring maintenance.

Benefit from BIG scale

The HookLoada HL260 model sets new standards in terms of bulk carrying capacity with containers up to 7500mm long, resulting in fewer transport cycles. Low rolling resistance radial floatation tyres and optimised suspension systems significantly reduce power and fuel requirement.

Benefit from BIG scale with HookLoada HL260.

More power.

More performance. More productivity.

Cross-sector. Cross-season.

Capable beyond your wildest dreams.

Delivering astute perfection

Delivering astute perfection, Stronga continue to develop optional equipment innovations for performance beyond market norms. In the video below, see the 26 tonne HookLoada fitted with the special hydraulic suspension option.

'The Other Guys' cannot compete with the high level of options offered in the Stronga HookLoada range. See more information further down this web page.

From agriculture to construction…

26 tonne roll off trailers from Stronga are well proven across a wide range of industries from agriculture to construction. Develop your own transport applications around this highly reliable, high capacity workhorse.

Key Benefits

Low roller height on standard wheels – 1250mm.
  • Lower picking up angle with longer containers
Good hook lift trailer tipping angle – 50°.
  • Tipping longer containers
Hook container length - 5615 - 7760mm. Optimal container length – 7270mm.
  • Big bulk capacity potential
Length from tower to rear roller - 6150mm.
  • For serious modern operations

Standard Specifications

BPW free steering front axle, 410x180 brake axles, 150x150mm square beam. 10 stud, 2150mm track.
BPW free steering rear axle, 410x180 brake axles, 150x150mm square beam. 10 stud, 2150mm track.
36000kg parabolic sprung suspension. Distance between axles - 1525mm.
Shockproof rubber-mount drawbar.
Cable-type hand brake.
560/60 R22.5 Michelin CargoXBib radial tyres. 10 stud heavy-duty wheels.
Hydraulic container locking clamps.
*Container locking design varies according to market.
Hydraulic rear axle stabilisers.
Two pipes to the tractor hydraulic system with distributor operated by remote control.
12 V electric system. Sealed loom. All lights super-bright LED.
3 position plate for bolting towing eyelet.
Swivel towing hitch. STR type. 50mm diameter eyelet.
Removable bumper at the rear of the hooklift trailer.

Optional Equipment

CommandSteer™ - in-cab control – excellent manoeuvrability in reverse – free steering travelling forwards. Only on rear axle. Watch video >
Load sensing for hydraulic brakes.
Load Sensing Valve (LSV) for air brakes.
Dual air and hydraulic brake system.
EBS and ABS braking systems; RSS roll stability support (STR-304 not required).
Automatic slack adjusters.
Load Sensing Valve (LSV) for hydraulic suspension.
Smart-board from WABCO. Only available with STR-306.
Electronic Power Steering (EPS). Watch video >
Air suspension with height controlling valve (AirLoada™ comes as standard when you buy STR-409). Watch video >
Hydraulic suspension for optimal axle travel. Watch video >
Multi-position sprung drawbar for high comfort at speed.
Hydraulic drawbar for easy levelling and high comfort. Watch video >
Front lift axle - Only with air or hydraulic suspensions. Watch video >
Other tyre brands and tyre sizes available.
Contact us for more information >
Auxiliary hydraulic connections with changeover valve at the rear of the roll off trailer.
Auxiliary hydraulic connections with electrical changeover valve at the rear of the roll off trailer.
Auxiliary connections with changeover valve on the hook tower.
Auxiliary connections with electrical changeover valve on the hook tower.
1500mm longer hook stroke.
QuickLoada™ fast tipping and unloading system. Watch video >
Two super-bright LED adjustable rear working lights.
Full-length ultra-light aluminium mudguards.
Hard plastic quarter mudguards, front and rear of the hooklift trailer.
Lockable steel toolbox. Various sizes available.
Contact us for more information >
Aluminium side rails to protect the hook lift trailer.
Hydraulically extendable rear bumper.
Manually extendable rear bumper.
PowerBoosta™ – pair of booster cylinders, increasing tipping and uploading cycle power, removing the requirement for PTO, pump and oil tank. Watch video >
Bolted-on ball towing hitch, Scharmuller type, 80mm diameter.
Swivel towing hitch, Scharmuller type. 50mm diameter eyelet.
Rear towing eyelet mounting plate for VBG rear drawbar.
*Available for selected markets only.
VBG-coupling, made by Stronga.
Automatic rear coupling D40 (STR-1002 required).
Rear mounted hydraulic brake connection.
Rear mounted light connection 7-pin socket.
Two LED flashing lights encased in secure housing at the rear of the trailer.
Signal light positioned at the front of the frame; showing that the steering system is in the centre.
Rear real-time video camera with screen display.

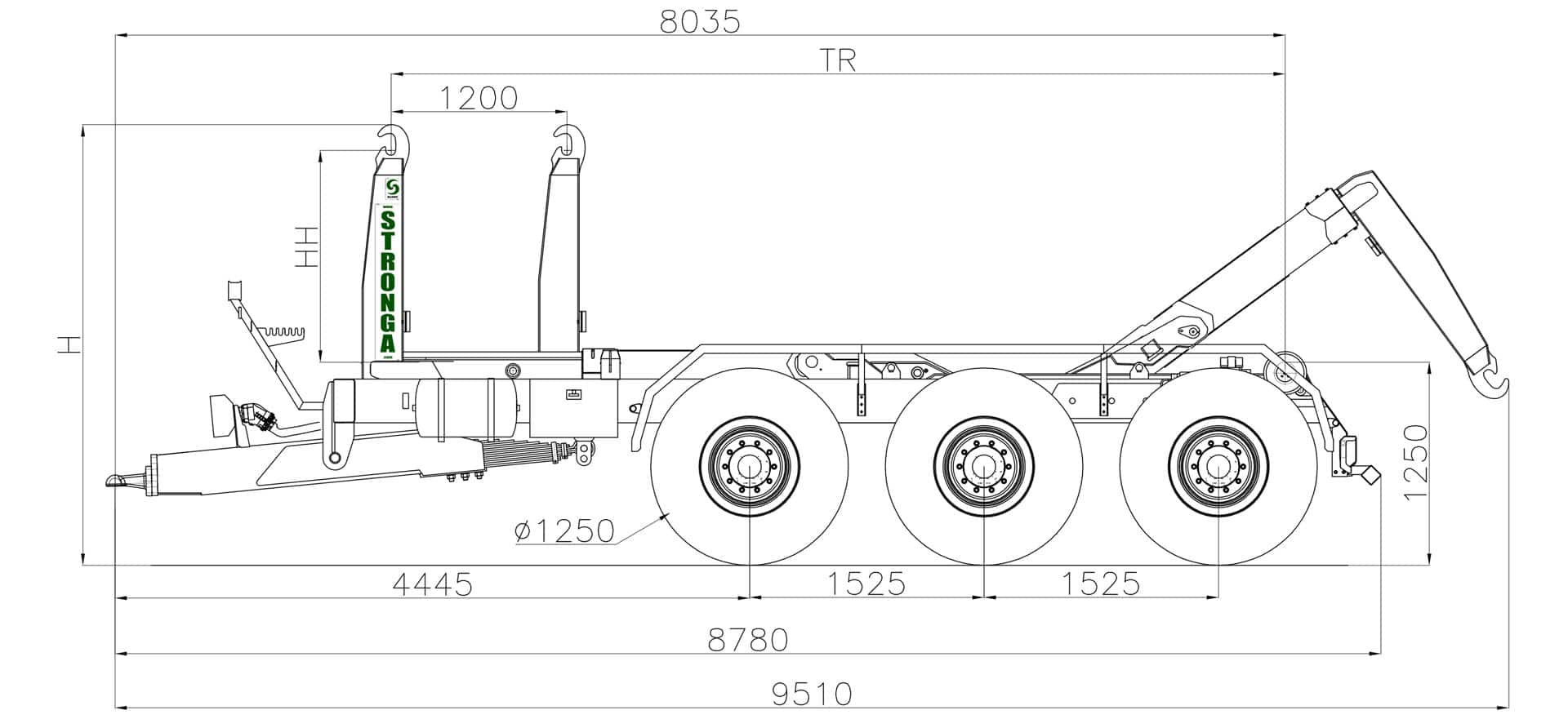

Model HookLoada HL260
Gross weight (40km/h) 31000kg
Tare weight ca. 7200kg
Maximum hooking load 26000kg
Maximum tipping load 26000kg
Drawbar load 3000kg (4000kg*)
Hook height 1570mm
Hook tower Telescopic
Hook stroke 1200mm
Sprung suspension capacity 36000kg
Main cylinders 2 units
Oil requirement Own hydraulic
Minimum draft requirement 200HP
Hitch height 510-550-590mm
Hydraulic pressure required 270 bar
Total length 8830mm
Maximum width (standard wheels) 2710mm
Standard wheels 560/60 R22.5
Connections to tractor -
Standard DIN 30722

The information shown on this web page is representative of a “DIN Standard” HL260 hook-lift trailer. Specifications and dimensions may vary depending on the customer’s local market preferences and regional laws. Specification, weights and payload may vary on fast tow models. As we are continually improving our products, technical details, masses and measurements are given as reference values only.

* 4000kg with K-80 ball towing hitch
